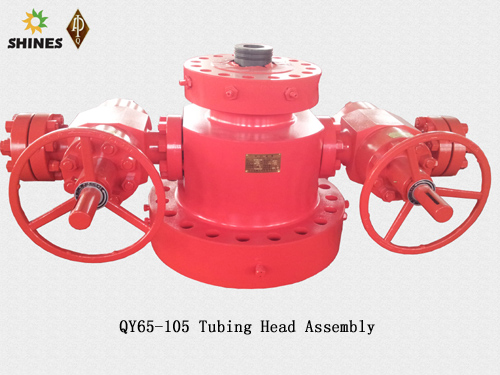

QY65-105 Tubing Head Assembly

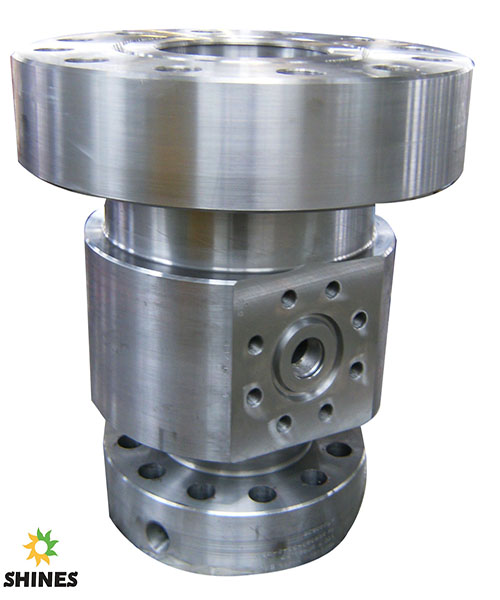

Tubing head
Tubing head with design of versatile straight-bore,can be installed tubing hanger with different specification

Straight-bore Design
45° shoulder design with high load capacity

Side Outlet Connection Form
Threaded flange side outlet,design with VR plug

Lock Down Screw Assembly
·Standardized design lock down srrew assembly
·Lock wear bushing,tighetn tubing hanger

Secondary Seal
Design with secondary seal mechanism at buttom,the casing head shall be installed to fit the height of sealing device through cutting casing on spot

Tubing Head,Top Flange and Tubing Hanger

·Rubber seal or metal-to-metal seal

·Tubing Hanger and top flange can be fed through with cable,or penetrated with power mandrel penetrator

·Tubing Hanger and top flange may connect multiple joints for control pipeline.
