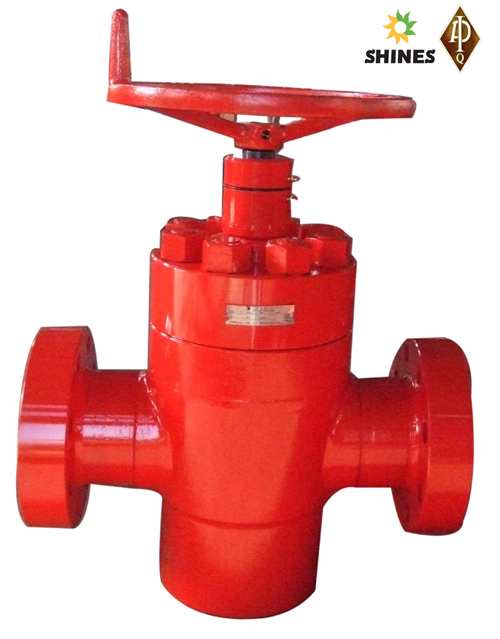

4 1/16" FC Gate Valve

(Interchangeable with Cameron Model FC Gate Valve)
The FC gate valve features a non-rising stem with a slab gate, Full-Bore Thru-Conduit Design, Floating Slab Gate and Seats , floating seat ring body bushing design to provide safe dependable service. It is available in flanged or threaded ends in standard bore sizes from 1-13/16” thru 4-1/16” in working pressures of 5,000 psi thru 10,000 psi wp. Seat rings, body bushings, gate, stem are easily replaced in the field, Simple routine maintenance program limits repairs, eases operation, protects against corrosion, and extends service life.
SPECIFICATION
● Manufactured and Tested in Accordance with API Spec 6A
● Forged Steel Body and Bonnet
● A True Bi-Directional Valve
● Low Operating Torque
● Quick Release Hand Wheel
● API Spec 6A PSL, 1, 2, 3
● Material Classes DD, EE, FF, to NACE MR-01-75

Available from 5000 psi to 15,000 psi in all Full-Bore Sizes

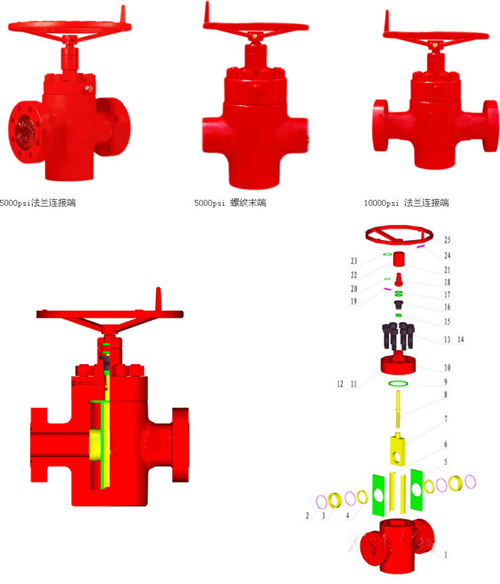

PARTS LIST

Item Description Qty Material Remark 1 Body 1 4130   2 Seat Seal Ring 4 TFLON   3 Seat 2 410   4 Body Bushing 2 Stellite.6   5 Retainer Plate 2 Steel   6 Guide 2 410   7 Gate 1 4130+HF   8 Stem 1 410   9 Bonnet Gasket 1 Steel   10 Bonnet 1 4130   11 Check Valve 1 Assy.   12 Grease Screw 1 Assy.   13 Nut 8 5140   14 Stud 8 4140   15 Stem Packing 1 TFLON   16 Packing Gland 1 Steel   17 Bearing Thrust 2 Steel   18 Stem Adapter 1 Steel   19 Stem Pin 1 Steel   20 O-Ring 1 NBR   21 Bonnet Cap 1 Steel   22 Grease Fitting 2 Assy.   23 O-Ring 1 NBR   24 Hand wheel Pin 1 Steel   25 Hand wheel 1 Steel
