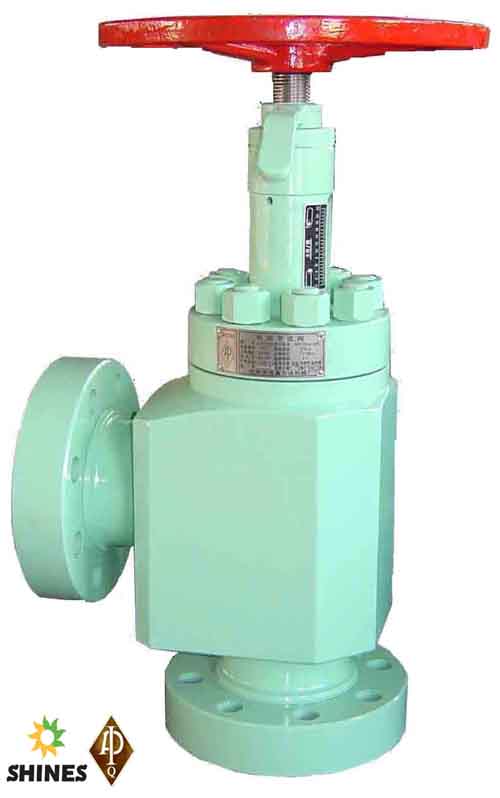

JLK52-35 Manual Choke Valve

The choke valve, a main component of Christmas tree, is designed to control production rate of the oil well, whose working pressure reaches 10000psi.Chock valves and positive choke valves. By rotating hand wheel to drive the stem forward and backward, the effective opening area of the choke bean is adjusting to control and adjust the production rate. The positive choke valve is designed to accomplish control of production rate by changing flow beans of various bores.

Features:

  1.The union used for connecting the bonnet and body of the positive choke valves allows fast make-up and break-out.

  2.Stem tip and bean adaptor are fabricated from special carbide alloys for corrosion and abrasion resistance.

  3Indicator lens with scale marks allows the operator to check the stem’s position and actual orifice area.

  4.Turn the hand wheel counter-clockwise and the valve will open; turn the hand wheel clockwise and the valve will close.

Part list

Serial NO.	Name	Quantity	Material	Remark
1	Bushing	1	Teflon
2	Valve body	1	35CrMo
3	Bonnet Stud	8	35CrMo
4	O-ring	2	NBR
5	Seat bushing	1	35CrMo
6	Valve seat	1	YG8
7	Stem adaptor	1	35CrMo
8	Valve core	1	YG8
9	O-ring	2	NBR
10	Packing box	1	35CrMo
11	O-ring	2	NBR
12	Valve Bonnet	1	35CrMo
13	Packing gland	1	35CrMo
14	Valve bonnet nut	8	35CrMo
15	Valve stem	1	2Cr13
16	Screw housing	1	40Cr
17	Saddle key	1	45
18	Valve stem nut	1	ZCuA19-4
19	Hand wheel	1	QT400-17
20	Indicator Ring	1	2Cr13
21	Stem protector	1	Q235
22	Bearing gland	1	40Cr
23	Bearing	2		Standard piece
24	Flat key	1		Standard piece
25	Grease cup	1		Standard piece
26	Packing ring	2	2Cr13
27	Packing	5	FKM
