1. Usage

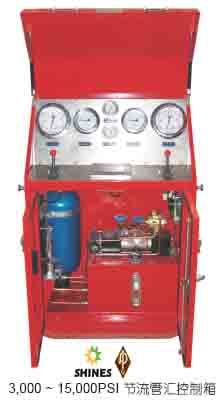

Choke manifold control console as a control assembly in hydraulic choke manifold, can remote control the open/ close of hydraulic choke valve for a long distance and the control panel can indicate the stand-pipe pressure, casing pressure and the opening / closing condition of hydraulic choke valve as well as the pulse number and frequency of the mud pump if pump-pulse counter equipped, which can keep the pressure under well and is a necessary device to control kick and blowout and perform the pressure control technology in pil / gaswell.

2. Technology Parameter
(1) Gas-suorce Pressure: 100psi
(2) Ambient Temperature: -20ºC ~ +60ºC
(3) Working Pressure: 500psi
(4) Quick Nipple in gas line: M16 x 1.5
(5) Quick Nipple in oil line: M22 x 1.5
(6) Hydraulic oil: anti-cryogenic hydraulic oil
(7) Length x Width x High: 960 x 600 x 1300
(8) Weight: 300Kg

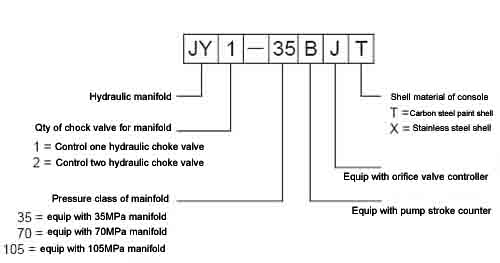

3. Illustration of type
