　 Your current location > Home> Products

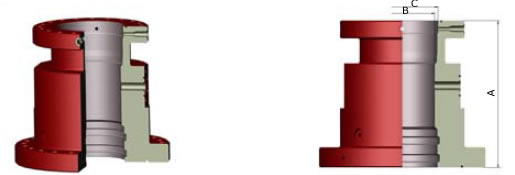

Casing Spool Body



Bottom Flange Top Flange A B C
11" 2,000 11" 2,000 500 230 250
3,000 500 230 250
3,000 3,000 500 230 250
5,000 500 230 250
5,000 5,000 650 230 250
10,000 650 230 250
13-5/8" 2,000 11" 2,000 480 230 250
3,000 560 230 250
5,000 660 230 250
13-5/8" 2,000 580 230 350
3,000 580 230 350
5,000 600 230 350
3,000 11 3,000 560 230 280
5,000 660 230 280
13-5/8" 3,000 660 230 350
5,000 660 230 350
5,000 11 5,000 660 230 280
10,000 725 230 280
15,000 725 230 280
13-5/8" 5,000 725 230 350
5,000 725 259 350
10,000 740 230 350
15,000 750 230 350
10,000 11 10,000 725 230 280
15,000 725 230 280
13-5/8" 10,000 740 230 350
15,000 800 230 350
16-3/4" 2,000 11 2,000 580 230 280
3,000 580 230 280
13-5/8" 2,000 580 304 350
3,000 600 304 350
5,000 620 304 350
16-3/4" 3,000 11" 3,000 580 230 280
5,000 650 230 280
13-5/8" 3,000 650 304 350
5,000 650 304 350
5,000 11" 5,000 775 230 280
10,000 750 230 280
13-5/8" 5,000 750 304 350
10,000 775 304 350
10,000 13-5/8" 10,000 830 304 350
16-3/4" 10,000 840 390 422
21-1/4" 2,000 13-5/8" 2,000 720 318 350
3,000 720 318 350
5,000 720 318 350
5,000 720 255 350
16-3/4" 2,000 720 390 422
3,000 720 390 422
20-3/4" 3,000 13-5/8" 3,000 725 318 350
5,000 725 318 350
10,000 725 318 350
20-3/4" 3,000 725 486 510
21-1/4" 5,000 740 486 510
21-1/4" 5,000 13-5/8" 5,000 725 318 350
10,000 740 318 350
16-3/4" 5,000 780 390 422
16-3/4" 10,000 820 390 422
