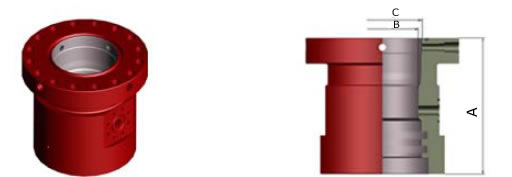

Casing Head Body



Casing Size Fop Flange Threaded Bottom Welded Bottom Slip Bottom
SIZE W.P. A B C A B C A B C
7" 11" 3,000 470 162 280 470 162 280 470 162 280
8-5/8" 11" 2,000 450 203 280 450 203 280 450 203 280
3,000 470 203 280 470 203 280 470 203 280
5,000 500 203 280 500 203 280 500 203 280
9-5/8" 11" 2,000 450 230 280 450 230 280 450 230 280
3,000 470 230 280 470 230 280 470 230 280
5,000 500 230 280 500 230 280 500 230 280
10,000 540 230 280 540 230 280 540 230 280
13-5/8" 5,000 490 230 350 490 230 350 490 230 350
10-3/4" 11" 2,000 450 259 280 450 259 280 560 259 280
3,000 470 259 280 470 259 280 470 259 280
5,000 500 259 280 500 259 280 500 259 280
10,000 560 255 280 560 255 280 560 255 280
11-3/4" 13-5/8" 2,000 470 279 350 470 279 350 470 279 350
3,000 470 279 350 470 279 350 470 279 350
5,000 520 279 350 520 279 350 520 279 350
16-3/4" 3,000 444 279 422 444 279 422 444 279 422
5,000 457 279 422 457 279 422 457 279 422
12-3/4" 13-5/8" 5,000 520 312 350 520 312 350 560 312 350
13-3/8" 13-5/8" 2,000 470 318 350 470 318 350 470 318 350
13-3/8" 13-5/8" 3,000 470 318 350 470 318 350 560 318 350
5,000 520 318 350 520 318 350 520 318 350
16-3/4" 3,000 470 318 425 470 318 425 470 318 425
5,000 520 318 425 520 318 425 520 318 425
16" 16-3/4" 2,000 445 386 425 445 386 425 445 386 425
3,000 445 386 425 445 386 425 445 386 425
5,000 457 386 425 457 386 425 457 386 425
20" 20-1/4" 2,000 490 482 510 490 482 510 490 482 510
20-3/4" 3,000 490 482 527 490 482 527 630 482 527
20-1/4" 2,000 490 482 540 490 482 540 490 482 540
