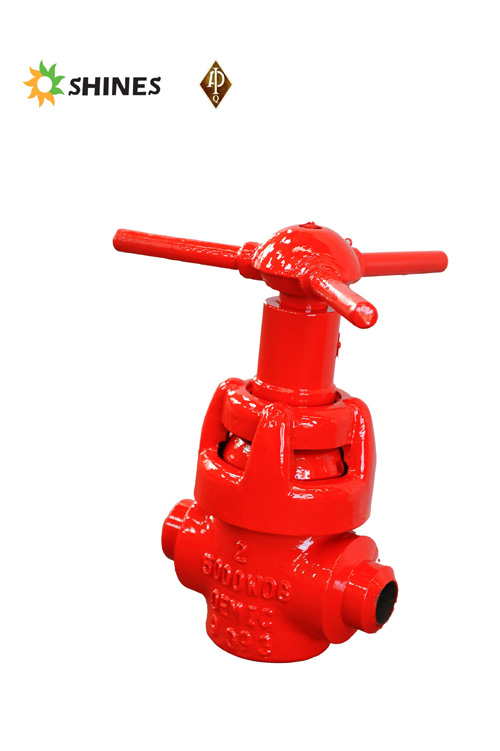

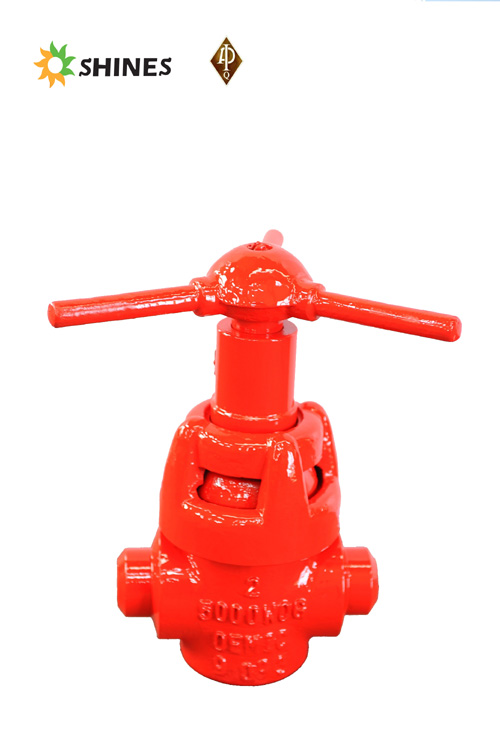

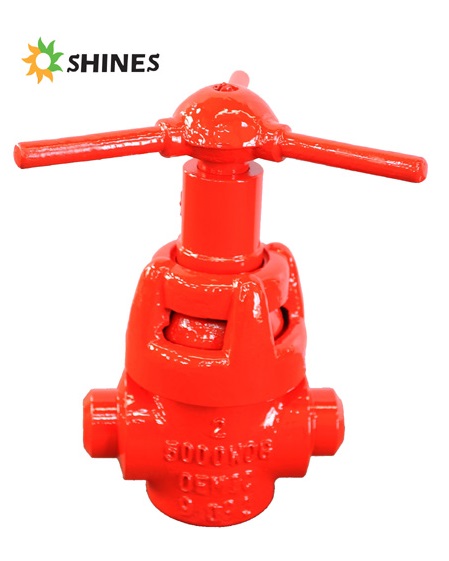

Mud Valves  (Soft Seal)

Technical Parameters

Working Pressure：  35~105MPa（5000psi~15000psi)

Nominal Diameter：  DN50~100(2"~4")

Temperature Level： -46℃~121℃（level L-U）

Model	Nominal diameter (mm)	Pressure (MPa)	Overall size(mm)			Joint connection size
			L	H	A
Z13Y-50-35	50	35	230	443	70.5	TBG2-3/8"
Z13Y-75-35	75	35	270	633	98	LP3"
2in 5000 psi LCSG/LP/BW/RJ	50	35	228.6	400
2in 3000 psi LCSG/LP/BW/RJ	50	21	228.6	400
4in 5000 psi LCSG/LP/BW/RJ	100	35	330	740
4in 3000 psi LCSG/LP/BW/RJ	100	21	330	590
4in 1000 psi LCSG/LP/BW/RJ	100	7	300	422
