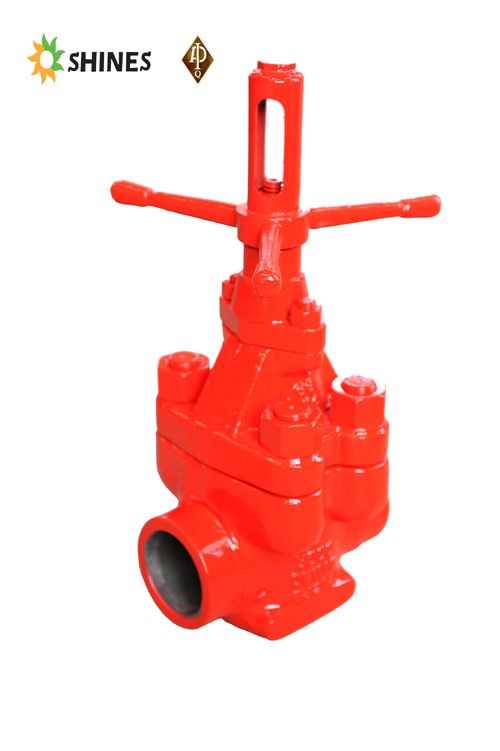

Mud Valves  (Welding Connection)

Technical Parameters

Working Pressure：  35~105MPa（5000psi~15000psi)

Nominal Diameter：  DN50~100(2"~4")

Temperature Level： -46℃~121℃（level L-U）

Order number	Model	Nominal diameter (mm)	Pressure (MPa)	Overall size(mm)
				L	H	A
NF1C62005T200	Z63Y-50-35	50	35	230	443	70.5
NF1C62005T300	Z63Y-50-35	50	35	225	416	61
NF1C62010T200	Z63Y-50-70	50	70	275	445	74
NF1F63215T200	Z63Y-78-105	78	105	381	698	125
NF1F64005T200	Z63Y-100-35	100	35	330	630	90
NF1F64010T200	Z63Y-100-70	100	70	330	630	90
NF1F65010T200	Z63Y-130-70	130	70	454.5	944	207
