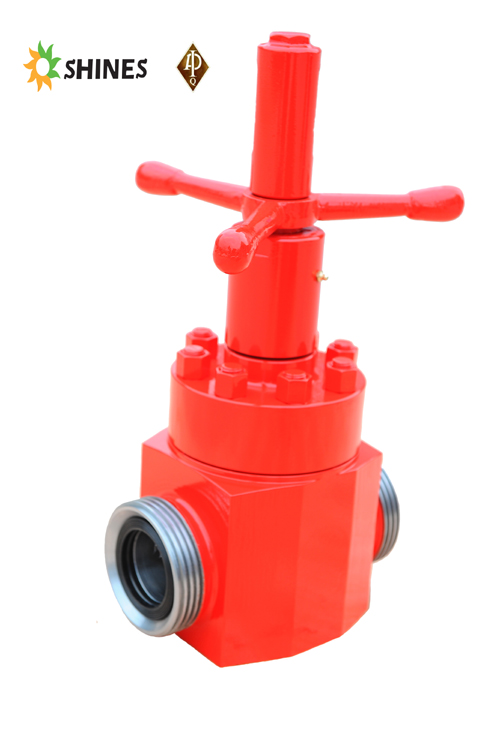

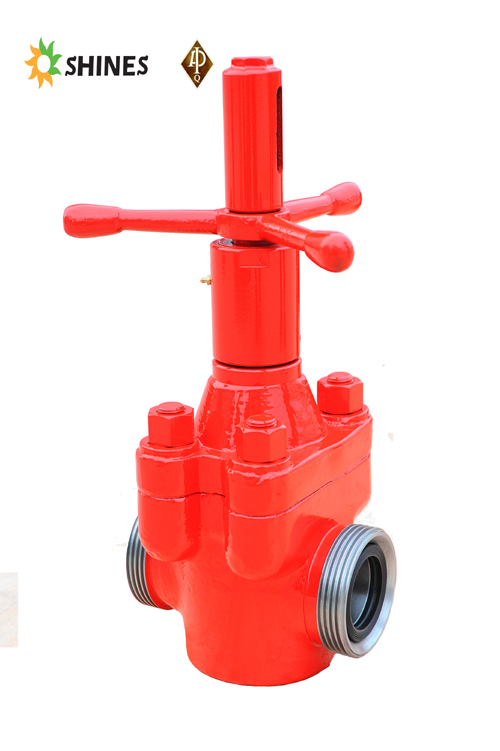

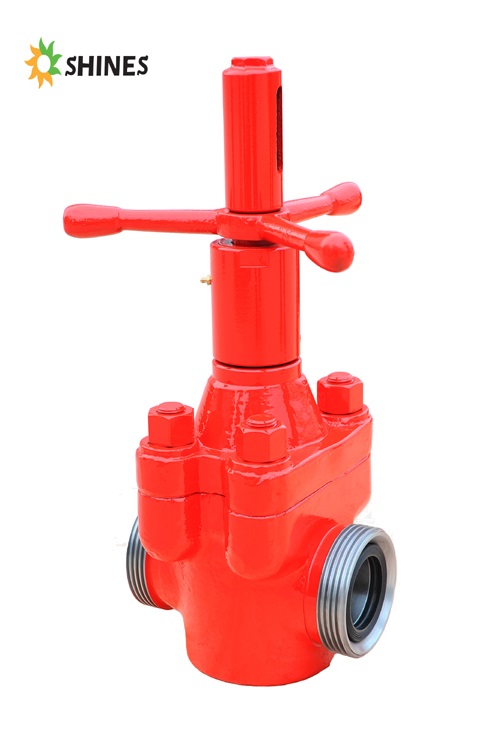

Mud Valves  (Union Connection)

Technical Parameters

Working Pressure：  35~105MPa（5000psi~15000psi)

Nominal Diameter：  DN50~100(2"~4")

Temperature Level： -46℃~121℃（level L-U）

Order number	Model	Nominal diameter (mm)	Pressure (MPa)	Overall size(mm)			Connection
				L	H	A
NF1C32005T200	Z23Y-50-35-1003	50	35	205	443	70.5	FIG1003
NF1C32005T300	Z23Y-50-35-1502	50	35	212	443	70.5	FIG1502
NF1F32005T200	Z23Y-50-35-1502F	50	35	225	416	61	FIG1502
NF1F32010T200	Z23Y-50-70F	50	70	275	445	74	FIG1502
NF1C33005T200	Z23Y-75-35-1003	75	35	270	633	98	FIG1003
NF1C33005T300	Z23Y-75-35-1502	75	35	270	633	98	FIG1502
NF1F33010T200	Z23Y-75-70F	75	70	320	648	84	FIG1502
NF1C34005T100	Z23Y-100-35-1002	100	35	330	630	90	FIG1002
NF1C34005T200	Z23Y-100-35-1003	100	35	330	630	90	FIG1003
NF1C34005T300	Z23Y-100-35-1502	100	35	330	630	90	FIG1502
NF1F34010T200	Z23Y-100-70F	100	70	380	767	155	FIG1003
NF1F35005T200	Z23Y-126-35F	126	35	497	924.5	186.5	FIG1003
