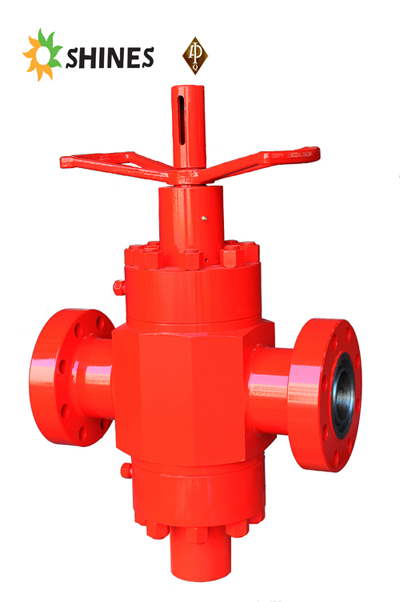

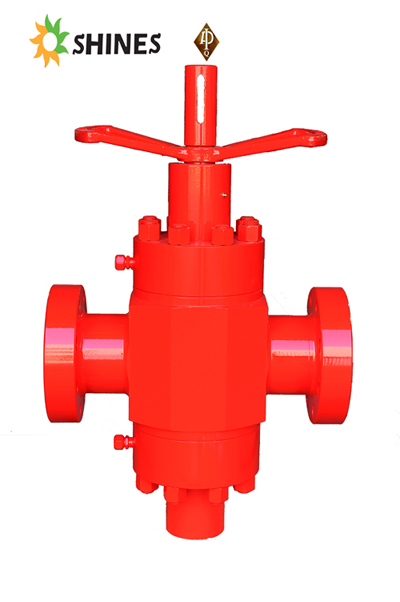

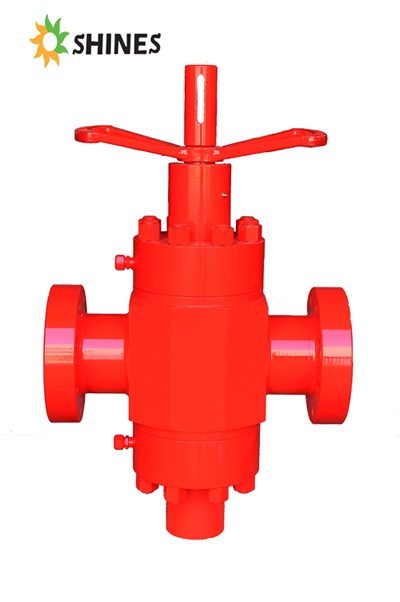

Manual Rising Stem Gate Valves
Manual rising and non-rising stem slab gate valves are simple operation, but inconvenient for remote automatic control. Through conduit type, easy to operate and flexible even operated with pressure. Two ends outlets can be thread connection, flange connection or union connection. The valve gate and seat adopts thermal spray welding which can make sure high hardness and good wear resistance. The valve body adopts integrated forging, high strength, neat appearance.
Technical Parameters
Working Pressure£º 21MPa~105MPa£¨3000~15000PSI£©
Nominal Diameter£º 2-1/16"¡«4 1/16"
Temperature Level£º -29¡æ~121¡æ£¨level P-U£©
Material level£º DD-EE
Manufacturing Standards£º API 6A NACE MR0175
Order number |
Model |
Spec |
Pressure
(MPa) |
Overall size(mm) |
Ring gasket |
L |
A |
H |
PF4C42203T200 |
PFF52-35 |
2-1/16" |
35 |
371 |
144 |
459 |
R24 |
PF4C42210T200 |
PFF52-70 |
2-1/16" |
70 |
521 |
149 |
584 |
BX152 |
PF4C42215T200 |
PFF52-105 |
2-1/16" |
105 |
483 |
149 |
584 |
BX152 |
PF4C42503T200 |
PFF65-35 |
2-9/16" |
35 |
422 |
151 |
680 |
R27 |
PF4C42510T200 |
PFF65-70 |
2-9/16" |
70 |
565 |
184 |
628 |
BX153 |
PF4C42515T200 |
PFF65-105 |
2-9/16" |
105 |
533 |
186 |
630 |
BX153 |
PF4C43215T200 |
PFF78-105 |
3-1/16" |
105 |
598 |
190 |
622 |
BX154 |
PF4C43403T200 |
PFF80-35 |
3-1/8" |
35 |
473 |
362 |
897 |
R35 |
PF4C44203T200 |
PFF103-35 |
4-1/16" |
35 |
550 |
293 |
756 |
R39 |
|
