Gate Valves

Introduction

Gate  valve  is  used  to  open  or  close  the  pipeline. According to the structure ,the gate valves is distributed into rising or non-rising stem gate valve. According to the mode of operation, it is distributed into manual or hydraulic etc. The gate valve is used for drilling fluid manifold, choke manifold , kill manifolds and christmas tree etc..

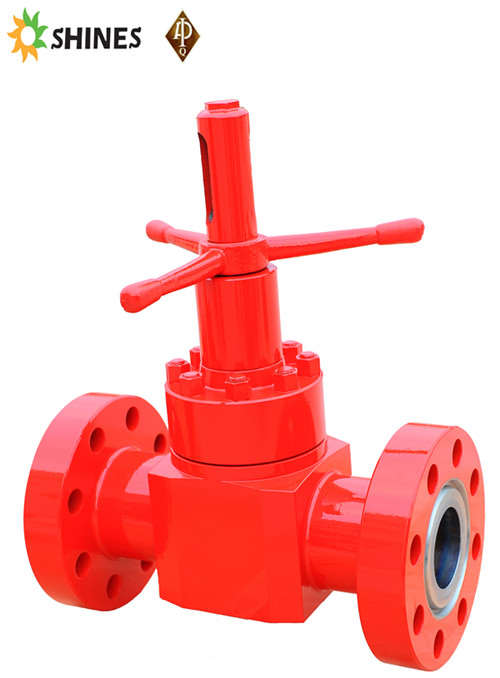

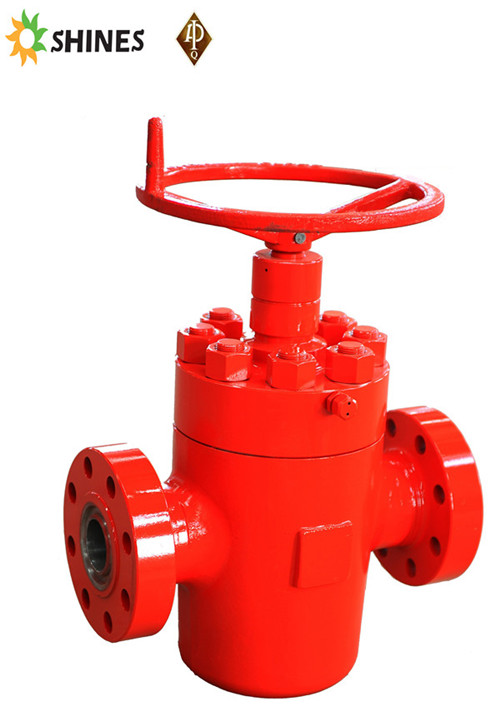

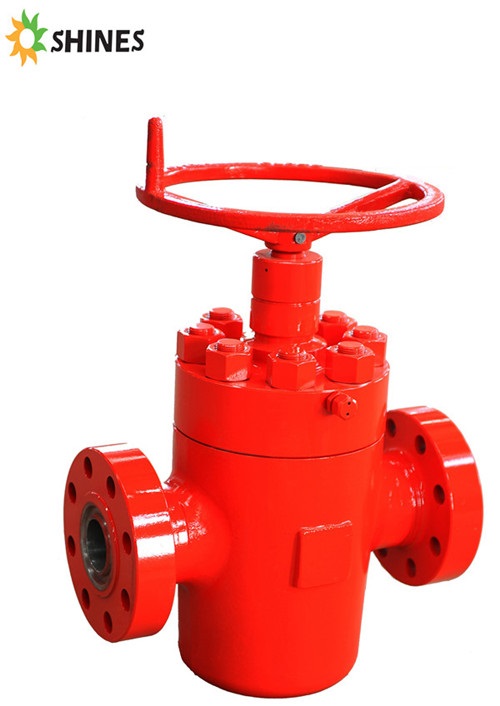

PFF type gate valve produced by our company is mainly used in the high pressure system, flange connection. Z series gate valve is mainly used for the mud circulation system,  of ten  called  mud  valve,  thread  or  union connection. FC and FLS series valve, flange connection, overall  and  connecting  dimensions  are  completely interchangeable with similar products.

Technical Parameters

Working Pressure：     21MPa~105MPa（3000~15000PSI）

Nominal Diameter：    52~103mm（2-1/16"～4 1/16"）

Temperature Level：   -29℃~121℃（level P-U）

Manufacturing Standards：API 6A  NACE MR0175
