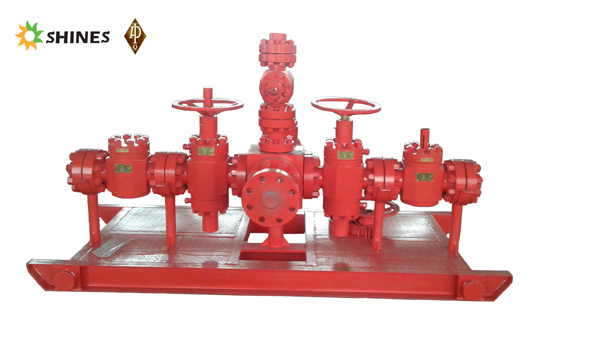

Kill Manifolds

Introduction

Kill manifolds are used to forcibly inject heavy drilling fluid, fresh water and fire extinguishing agent into the well to carry out well-kill operation, prevent well kick, blowout or fire, and fire suppression operation after fired. It can be open flowed through flow out pipeline directly to release bottom pressure of the well.

Technical Parameters

Working Pressure：     35~140MPa（5000~20000PSI）

Nominal Diameter：    52~103mm（2 1/16"~4 1/16"）

Temperature Level：   -46℃~121℃（level L-U）

Specification Level：   PSL3、PSL3G

Performance Level：   PR1

Manufacturing Standards：API 16C
