Introduction

Drilling fluid manifolds are used for connecting mud pumps  and  top  drive  device  of  drilling  rig  or  water tap and so on,   injecting drilling fluid into well by the mud  pumps,  or  the  drilling  fluid  in  the  well  returns, realizing circulation of the drilling fluid, and meet other requirements.

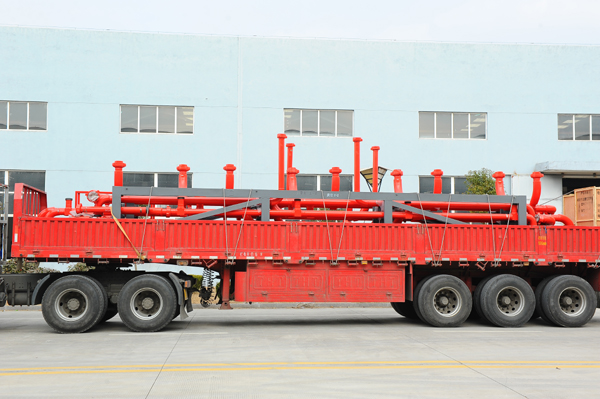

Drilling  fluid  manifold  consists  of  parallel  pumps manifold、vertical pipes manifold、pipe lines、high pressure hose assembly、valves and meters etc.. Our company’s products adopt goose shape T-structure, compact and low in fluid resistance. The drill floor valves can be used directly as single pipe. Product quality reliable and durable.

Technical Parameters

Working Pressure：  35~70MPa（5000psi~10000psi) Nominal Diameter： 50~125mm(2"~5")

Temperature Level： -46℃~121℃（level L-U）

Connection：Union or flange

Working Condition： Standard, low temperature, acid (H2S)

Manufacturing Standards：SY/T5244、API 6A、NACE MR0175 etc
