Introduction

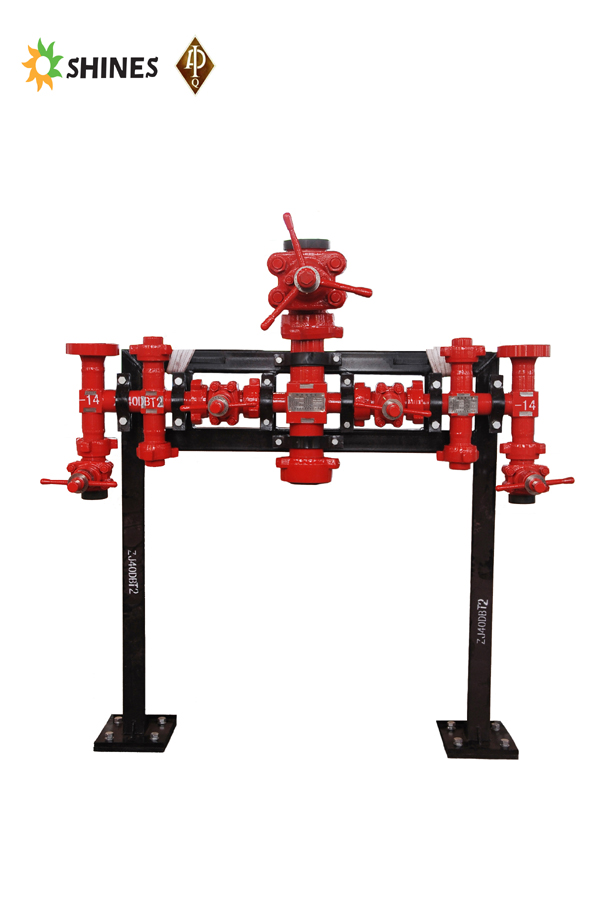

Stand  pipe  manifolds  are  installed  on  the  drilling platform, used to connect the riser and ground pipeline, and  leads  to  the  top  drive  or  faucet.  Stand  pipe manifolds and ground pipeline makes up single pipe and single ground, single pipe double ground, double riser pipe single ground, double riser pipe and ground in various combinations, meet the requirement of the drilling technology

Technical Parameters

Working Pressure：  35~70MPa（5000psi~10000psi)

Nominal Diameter： 50~125mm(2"~5")

Temperature Level： -46℃~121℃（level L-U）

Connection：     Union or flange

Working Condition： Standard, low temperature, acid (H2S)

Manufacturing Standards： SY/T5244、API 6A、NACE MR0175 etc.
