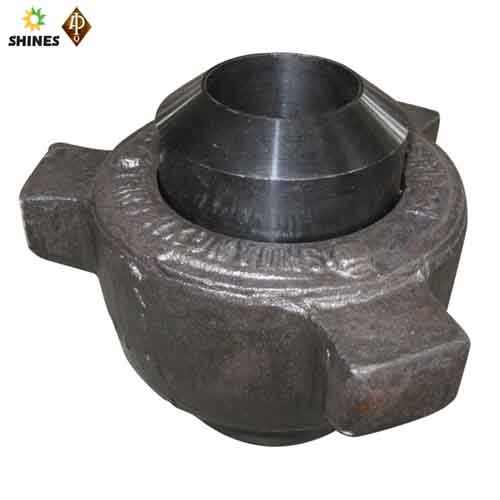

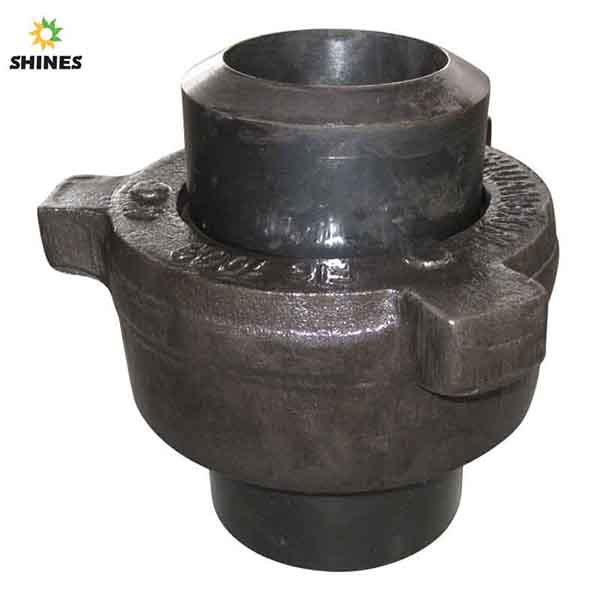

2”-1502 High Pressure Union

The international advanced technology is brought into high pressure union, which is made of high strength alloy steel forging. The strict heat treatment assures uniformity of metallographic structure and pressure capability of the joint. The material conforms to ASTM and AISI standard. Its technical performance completely conforms to API Spec 16A. The product sealing is reliable, quick assemble and disassemble good interchangeability. The joint type can be pipeline thread, tubing thread, butt welding thread or press sealing ends.

The models of high pressure union made in our company are as followings: model 100, model 200, model 206, model 207, model 211, model 300, model 402, model 600, model 602, model 1002, model 1003, model 1502, model 2002, and model 2202.

Figure Number	Pressure Rating(PSI)				Nominal Pipe Size
	Standard Service		Sour Gas Service		in	1	1 1/4	1 1/2	2	2 1/2	3	4	5	6	8	10	12
	Cold Working	Text	Cold Working	Text	mm	25	32	40	50	65	80	100	125	150	200	250	300
100	1000	1500	NA	NA					Δ	Δ	Δ	Δ	Δ	Δ	Δ
200	2000	3000	NA	NA		Δ	Δ	Δ	Δ	Δ	Δ	Δ		Δ	Δ	Δ
206	2000	3000	NA	NA		Δ	Δ	Δ	Δ	Δ	Δ	Δ		Δ	Δ	Δ
207	2000	3000	NA	NA							Δ	Δ
300	2000	3000	NA	NA					Δ		Δ	Δ
400	2500	3750	2500	3750										Δ	Δ	Δ	Δ
400	4000	6000	4000	6000					Δ		Δ	Δ
600	6000	9000	NA	NA					Δ		Δ	Δ
602	6000	9000	6000	9000		Δ		Δ	Δ		Δ	Δ
1002	10000	15000	7500	11250		Δ			Δ		Δ	Δ	Δ	Δ

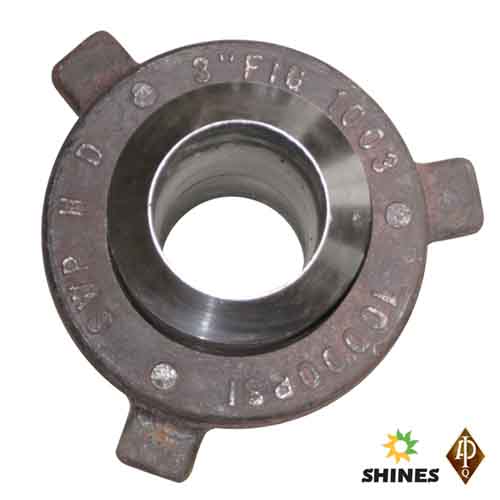

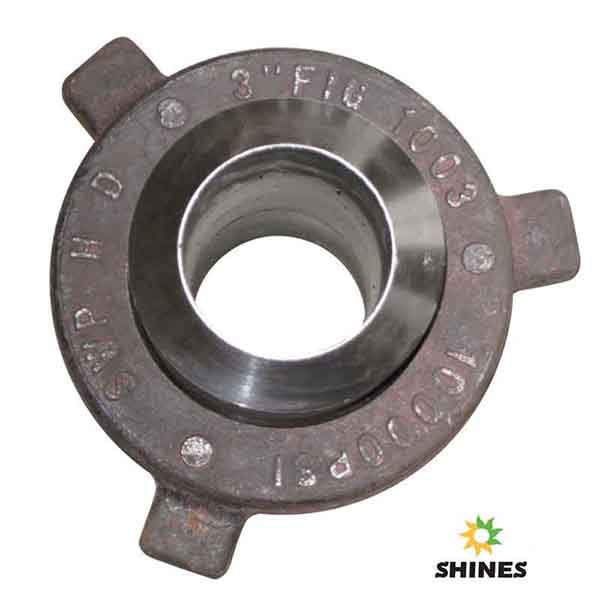

1003	10000	15000	7500	11250							Δ	Δ	Δ
1502	15000	22500	10000	15000		Δ		Δ	Δ	Δ	Δ	Δ	Δ	Δ
2202	NA	NA	15000	22500						Δ	Δ
